Immersive Voice Mode

Full-screen voice interface for immersive conversations.

1<html lang="en"> 2 <head> 3 <title>Touchpoint Sample HTML</title> 4 <meta name="viewport" content="width=device-width, initial-scale=1"> 5 </head> 6 <body> 7 <script type="module"> 8 import { create, React, html } from "https://unpkg.com/@nlxai/touchpoint-ui@1.1.3/lib/index.js?module"; 9 10 const touchpoint = await create({ 11 config: { 12 applicationUrl: "YOUR_APPLICATION_URL", 13 headers: { "nlx-api-key": "YOUR_API_KEY" }, 14 languageCode: "en-US", 15 userId: crypto.randomUUID(), // Required for voice 16 }, 17 input: "voice", // Enable full voice mode 18 }); 19 20 </script> 21 </body> 22</html>

Compact Voice Mode (Voice Mini)

Floating module for voice without taking over the screen.

1<html lang="en"> 2 <head> 3 <title>Touchpoint Sample HTML</title> 4 <meta name="viewport" content="width=device-width, initial-scale=1"> 5 </head> 6 <body> 7 <script type="module"> 8 import { create, React, html } from "https://unpkg.com/@nlxai/touchpoint-ui@1.1.3/lib/index.js?module"; 9 10 const touchpoint = await create({ 11 config: { 12 applicationUrl: "YOUR_APPLICATION_URL", 13 headers: { "nlx-api-key": "YOUR_API_KEY" }, 14 languageCode: "en-US", 15 userId: crypto.randomUUID(), // Required for voice 16 }, 17 input: "voiceMini", // Enable compact voice mode 18 }); 19 20 </script> 21 </body> 22</html>

Voice Input Options

ModeDescriptionBest For
voiceFull-screen voice interface with immersive experiencePrimary voice interactions, voice-first applications
voiceMiniCompact floating module with minimal controlsVoice as a secondary input option, space-constrained layouts

Application and Touchpoint Prerequisites

All voice modes require:

ItemDescription
config.userIdA unique identifier in your config (required for voice session management)
Voice-enabled ApplicationYour NLX application must be configured for voice on API channels
Browser supportWebRTC APIs must be available
User permissionsMicrophone access must be granted when prompted

When to Use Immersive Voice mode

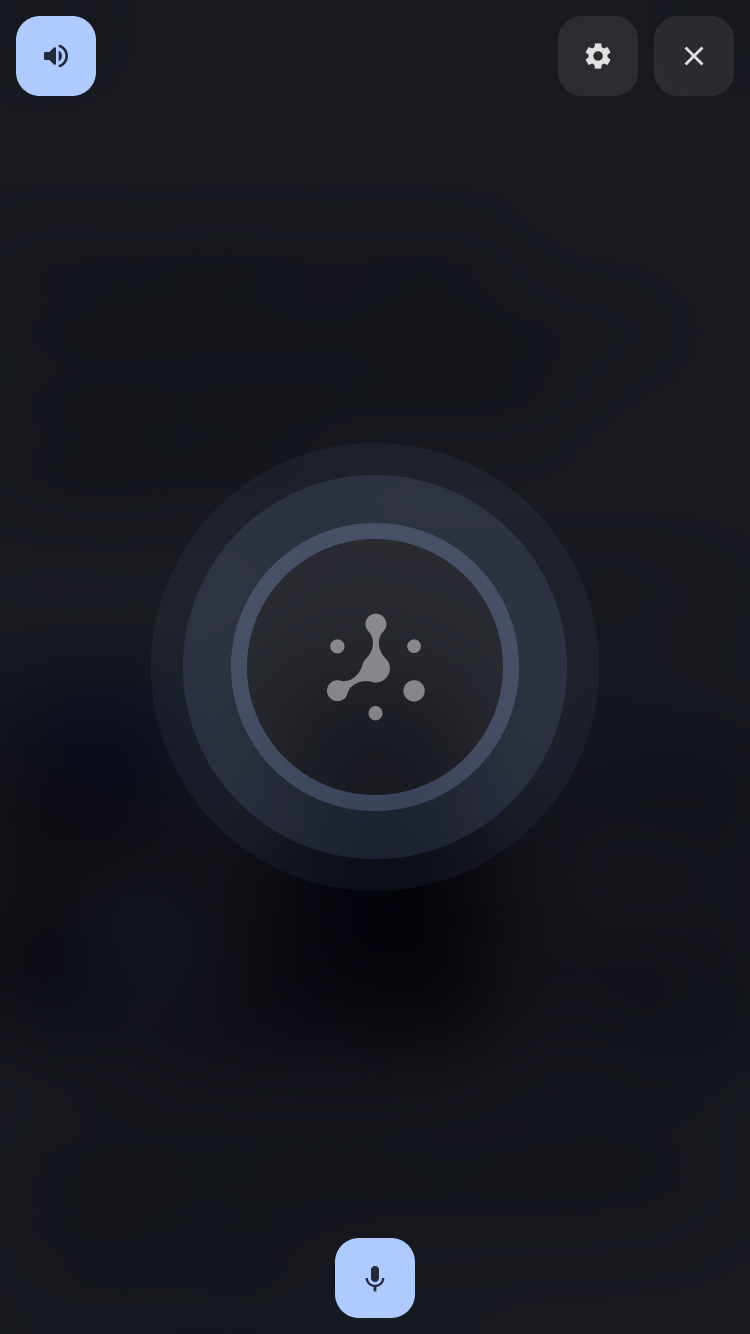

Voice Mode Animation

Use voice when:

  • Voice is the primary interaction method
  • You want an immersive, focused experience
  • Screen real estate isn't a concern
  • The conversation is the main user activity

When to use Voice Mini

Voice Mini Mode Animation

Use voiceMini when:

  • You're using Voice+ in Bidirectional mode
  • Voice is an optional input method alongside other UI
  • You need to preserve screen space
  • Users need access to other page content during voice interaction
  • You want a less intrusive voice option
